High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2

High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2
High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2 High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2 High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2 High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2

Large Image :  High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2

Product Details:
Place of Origin: China
Brand Name: Jiulong
Model Number: Jiulong-P
Payment & Shipping Terms:
Minimum Order Quantity: 1mt
Price: USD+3000+MT
Packaging Details: discuss
Delivery Time: discuss
Supply Ability: 2000+MT+Per Year

High Temperature Shift Catalyst For Reaction Of CO And Steam Generating H2

Description
Color: White Powder BET: 135m2/g
Pore Volume: 0.35 Na2O: Max0.08
D50: 83 Dry Basis: Min70
High Light:

catalytic cracking catalyst

,

fcc additives

KLB-101 CO High (Medium) Temperature Shift Catalyst





Characteristics is as follows:


1. High activity
2. High strength in using
3. Low bulk density
4. Wide temperature scope for using
5. Extreme high ability of resistant to condensation water



KLB-101 CO high (midium) temperature shift catalystis a high-performance product produced through modulation of the promoters, taking iron oxide as active component, chrome oxide as structure modifier.
  • Excellent low-temperature activity.
  • Excellent selectivity.
  • Excellent mechanical strength.
  • Low Bulk density
  • Excellent sulfur resistance performance.
  • Strong adaptability and large operating elasticity.

Applications and operating conditions
KLB-101 carbon monoxide high (medium) temperature shift catalyst is suitable for the reaction of CO and steam generating H2and CO2 in synthesis ammonia and hydrogen plant.
  • Inlet temperature: 280-360℃
  • Maximum temperature: 530℃
  • Pressure: 0.1-5.0MPa
  • Dry gas space velocity: 500-4000h-1


Physico-chemical properties

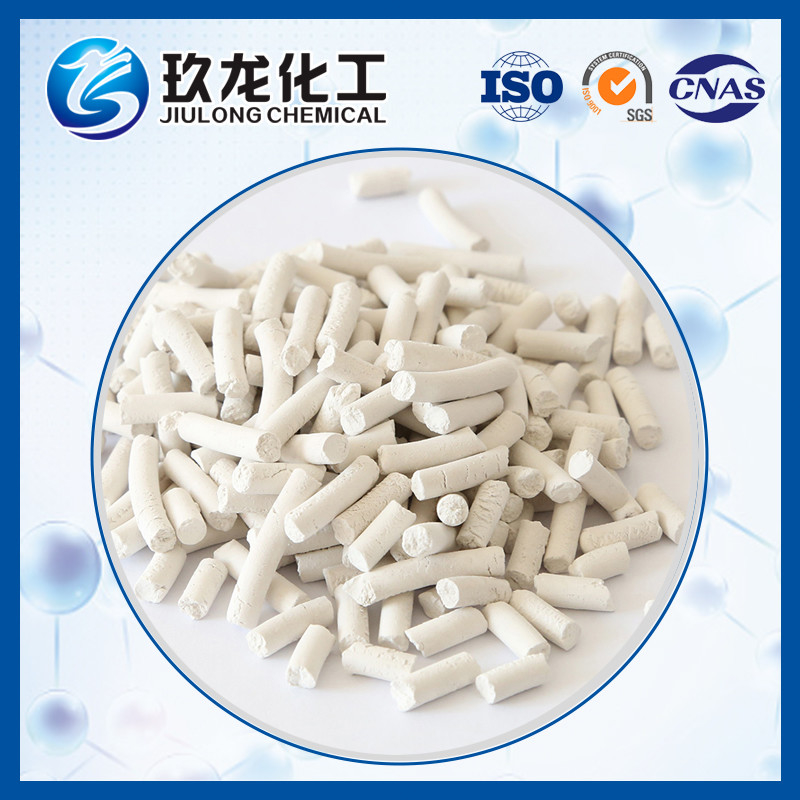

Two kinds of KLB-101 CO high (middle) temperature shift catalysts with diameter of 5mm or 9mm according to the customer’s demand can be provided.


Low sulfur content in catalyst' body, special time for releasing sulfur can be saved in initial start of large scale synthetic ammonia plant in which high temperature converter is connected to low temperature converter directly.

Item Unite Spec
Appearance



/



white flowing microspheres

BET M2/g 135
Attrition Index %h-1 1.5
Bulk Density g/ml 0.72
Pore Volume ml/g 0.35
Na2O wt% 0.10
Al2O3 wt% 28
LOI wt% 5
D50 um 83
0-20 um 4
0-40 um 13
0-149 um 92
