Product Details:
|
| Color: | White Sphere | Bulk Density: | 0.5-0.65g/cm3 |
|---|---|---|---|
| Cush Strenght: | Min 80N | AL2O3: | 90% |
| Fe: | 0.03 | Na20: | 0.03 |
| SIO2: | 0.03 | ||
| High Light: | catalyst support balls,alumina supported catalysts |
||

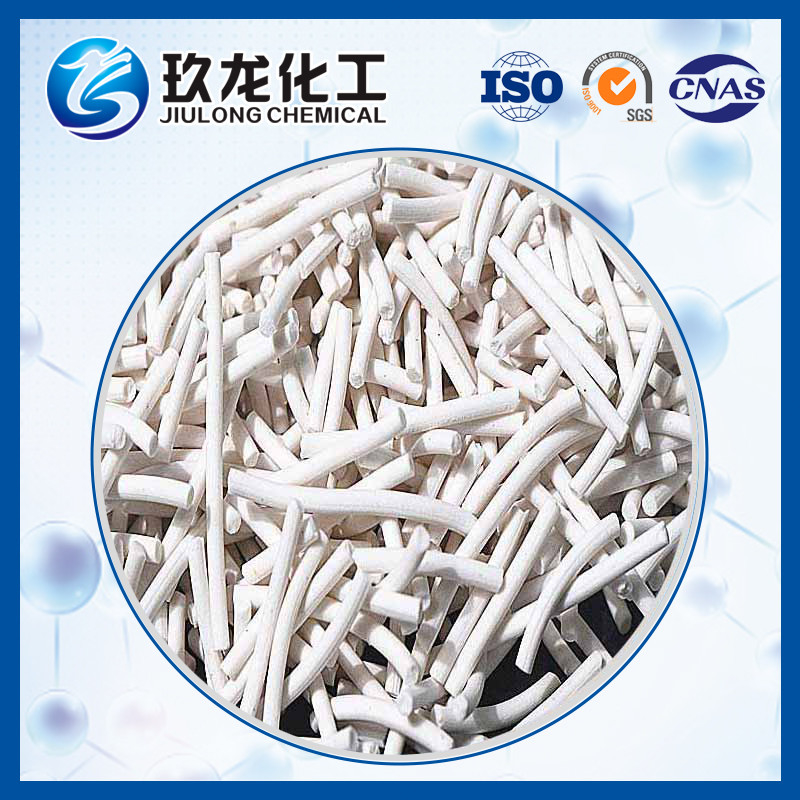

QLH-04 hydrogen catalyst bed protector
suitable for all kinds of oil hydrogenation unit may be partially or completely replace the balls and the upper portion of the porous filler loading in the catalyst bed, removing and depositing metal ions, especially iron ions in the pores of the catalyst, avoiding the hydrotreating the catalyst coking and compaction, effectively inhibit the catalyst bed pressure drop rise, extend equipment operating cycles.
The content of *Na2O according to user needs
characteristic
■ HDM has a good performance and effective removal of feed iron, calcium ions; pore volume, capacity dirt ability, effective removal of mechanical impurities feed; protect downstream hydrotreating catalyst, effective It means extending the service period;
■ high catalyst strength, anti-coking properties;
■ Comprehensive performance and technical indicators have reached the international advanced level.
Conditions of Use
Operating temperature / ℃ : 200 to 420
Pressure / MPa : 1.0 to 18.0
Liquid LHSV / h-1: 100 to 200
