Product Details:
|
| Product Name: | One Stage Reforming Catalyst | One Stage Reforming Catalyst: | 140 |
|---|---|---|---|
| Inlet Temperature: | 400～700℃ | Outlet Temperature: | 600～950℃ |
| Pressure: | Normal Pressure～5.0MPa | Space Velocity: | ≤2350h-1 |
| High Light: | hydrotreating catalyst,solid phosphoric acid catalyst |
||

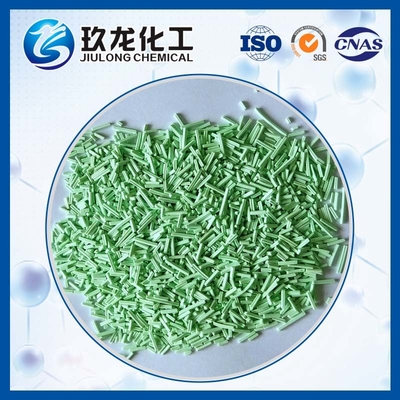

One stage reforming catalyst
1. Loading proposal
| code | Loading area | Loading arrangement |
bulk density kg/M3 |
NiO % ≥ |
SiO2 % ≤ |
rare earth % |
balance % |
| HTZ112-HB | upper stage | 50% | 980 | 14.0 | 0.2 | 0.5-2.0 | Ca/Al |
| HTZ112-HA | Lower stage | 50% | 980 | 14.0 | 0.2 | -- | Ca/Al |
2. Product quality standard
|
code |
Specification |
(NiO)% | activity |
Crushing strength ≥ |
Low strength particle percentage ≤% |
| dry gas CH4(V)％,≤ | |||||
| HTZ112-HB | Seven holesФ17×10 | 14.0 | 23.0 | 200 | 5.0 |
| HTZ112-HA | Seven holesФ17×17 | 14.0 | 66.0 | 250 | 5.0 |
3. Process condition
| Total carbon in feedstock (%) | 140 |
| inlet temperature | 400～700℃ |
| outlet temperature | 600～950℃ |
| pressure | normal pressure～5.0MPa |
| space velocity | ≤2350h-1 |
| water /carbon | 2.5～5.0 |
| sulfur content in inlet | ≤0.5ppm |
4. Performance condition ( in normal process condition)
| CH4 content of SOR in outlet | ≤11.42%(v) |
| CH4 content of EOR in outlet | ≤13.68%(v) |
| SOR pressure drop | ≤2.5bar |
| EOR pressure drop | ≤3.0bar |
| Service life | ³ 3 year |
5.property guarantee)
| Service life | 3 year |
| CH4 content of Converter in outlet | 13.68% (V) |
| Pressure drop £ | 3.0 bar |
